Drawing Program

This C# drawing program uses a custom language to create shapes and patterns. I built it for my third-year university software engineering assignment.

You can download the demo executable or browse the source on my Gitea. It should run under Wine, though I encountered problems with the file locator.

Custom language

I designed the language to meet the assignment requirements. I received 100% of the available marks. The requirements included:

• Drawing basic shapes and lines, such as circles and squares.
• Storing and retrieving variables.
• Flow control, including if statements.
• Methods and functions with and without parameters; recursion was not required.
• Loading and unloading programs.
• Error detection.

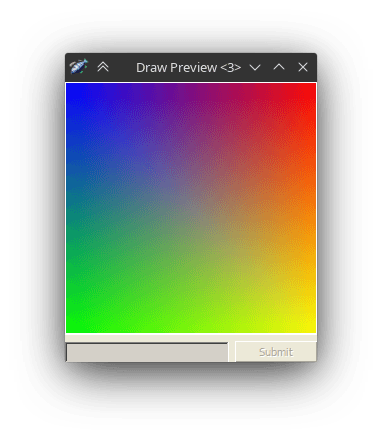

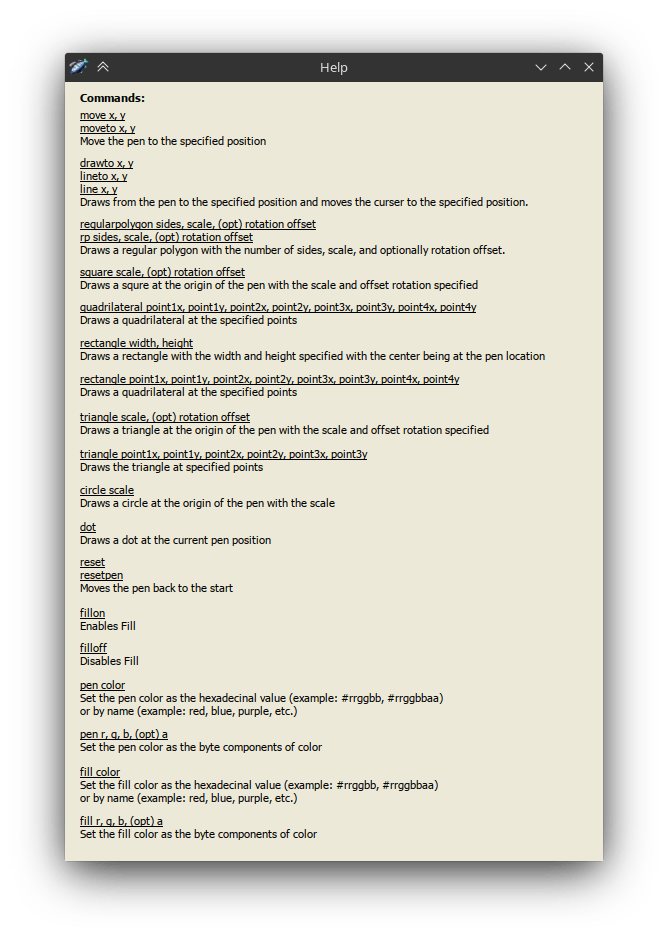

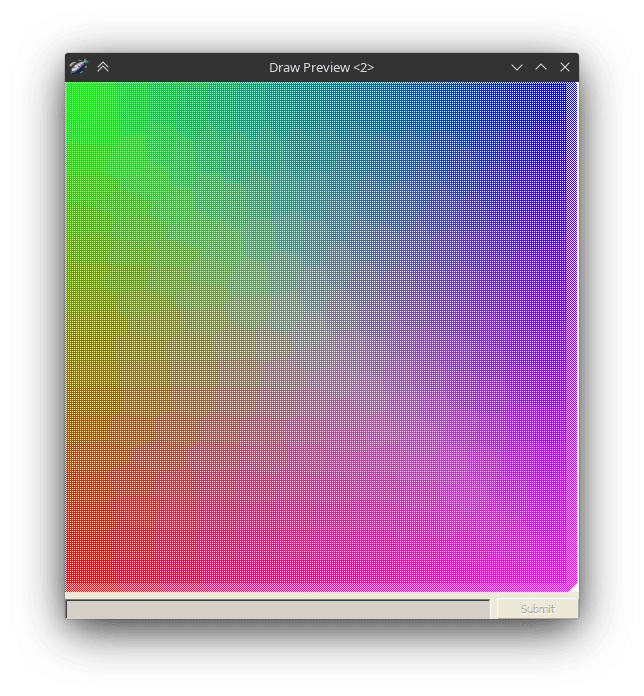

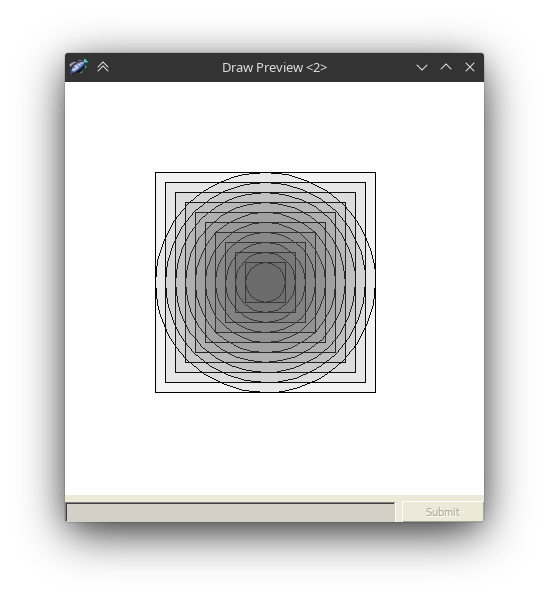

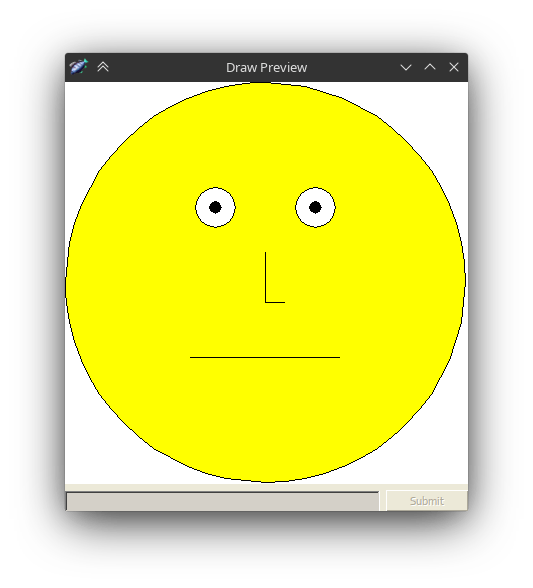

Gallery

1 / 4

Documentation

Each class has documentation explaining its use and role in the program. I generated the project documentation with Doxygen.

Videos

I recorded two walkthroughs of the project and its code for the assignment. Watch the first walkthrough and second walkthrough below.

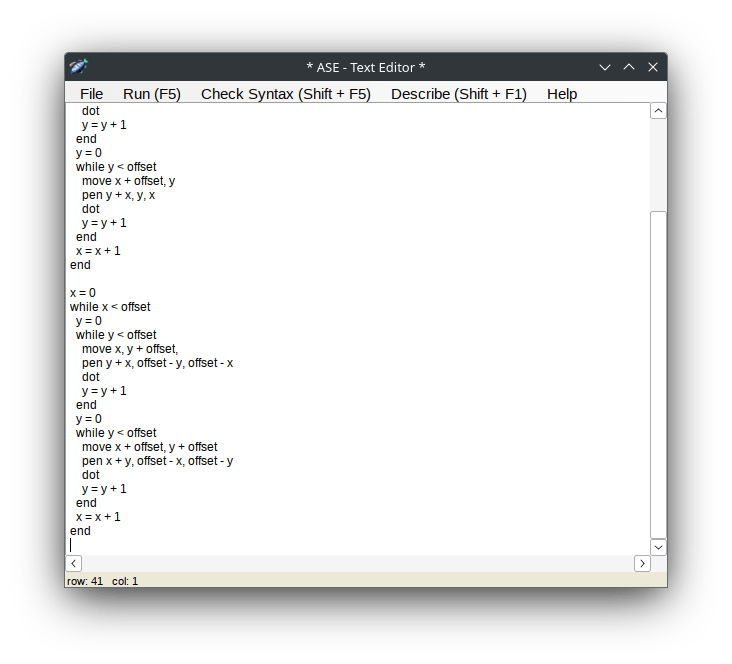

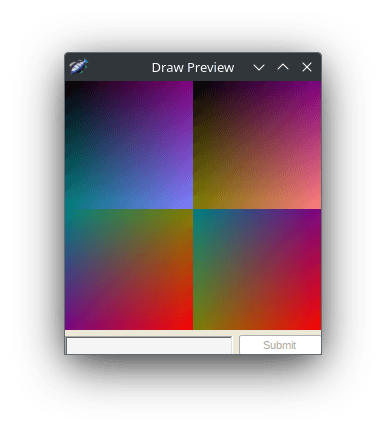

Example with code

1 / 2

Code

var x = 0
var y = 0
var offset = 128

while x < offset
  y = 0
  while y < offset
    move x, y
    pen x, y, x + y
    dot
    y = y + 1
  end
  y = 0
  while y < offset
    move x + offset, y
    pen y + x, y, x
    dot
    y = y + 1
  end
  x = x + 1
end

x = 0
while x < offset
  y = 0
  while y < offset
    move x, y + offset,
    pen y + x, offset - y, offset - x
    dot
    y = y + 1
  end
  y = 0
  while y < offset
    move x + offset, y + offset
    pen x + y, offset - x, offset - y
    dot
    y = y + 1
  end
  x = x + 1
end
